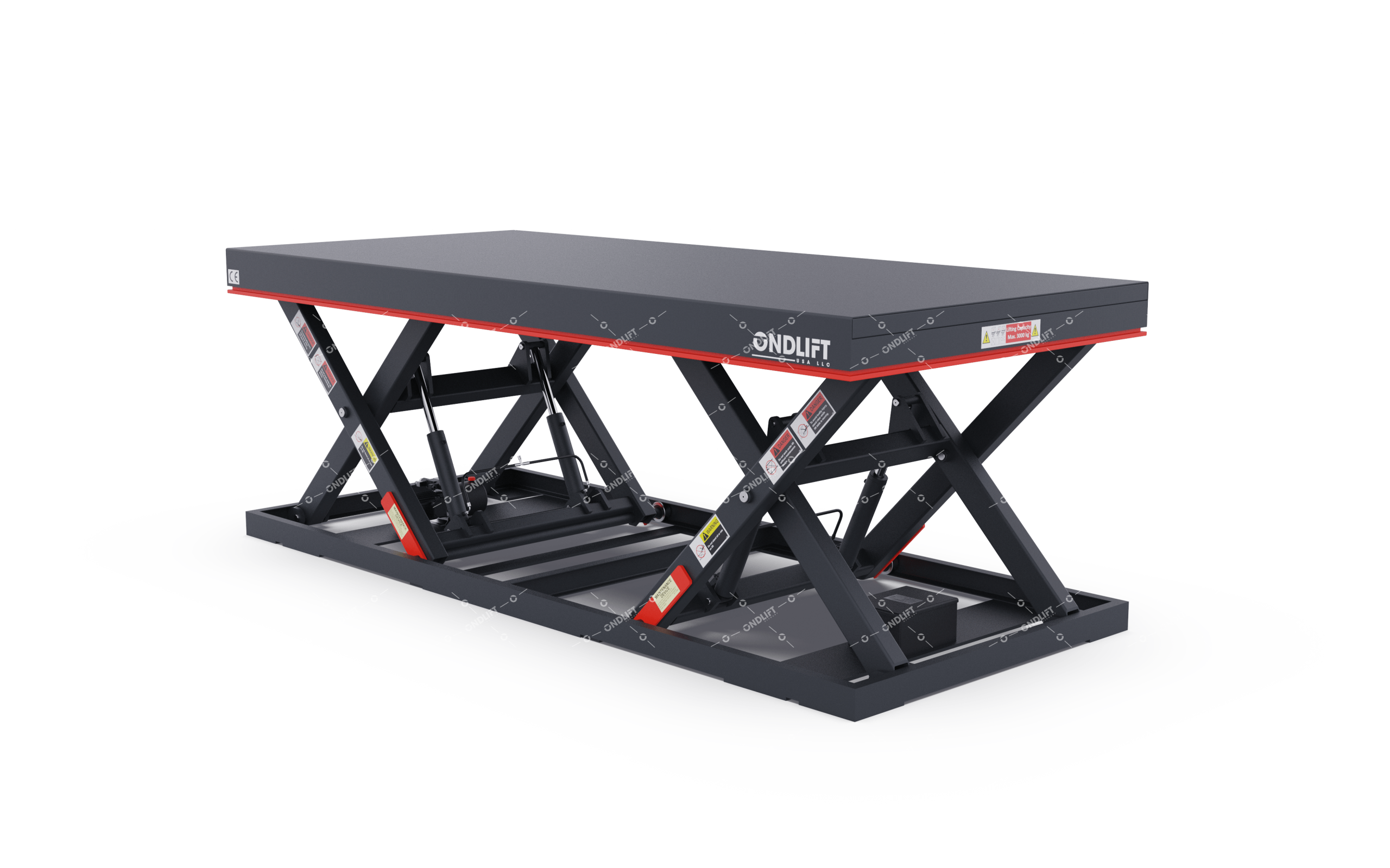

Tandem Lift Table

The Ond Lift Germany Tandem Type Scissor Lift is engineered to deliver outstanding performance in industrial operations where oversized or heavy materials must be elevated safely. Designed with advanced technology, it can handle loads from 100 kg up to 250,000 kg, making it a highly versatile lifting platform for demanding projects. Its tandem scissor mechanism ensures even, stable, and secure lifting across long platform surfaces.

Holen Sie sich jetzt ein Angebot
Tandem Lift Table

Standard Products

Type Art No () Capacity (kg) E X F - Platform Dimensions (mm) H - Stroke (mm) C - Closed Height (mm) Lifting Time (sec) Motor (kW) Weight (kg)
Filtrele
ESPH.1/80-20 60.80.504 8000 6000 x 2000 2000 400 66 4 3400
ESPH.1/80-16-2 60.80.503 8000 5000 x 1500 1600 400 52 4 2750
ESPH.1/80-16-1 60.80.502 8000 4500 x 1200 1600 400 45 4 1900
ESPH.1/80-11 60.80.501 8000 3600 x 900 1100 400 40 4 1800
ESPH.1/80-09 60.80.500 8000 2700 x 800 820 400 36 4 1500
ESPH.1/60-20 60.60.404 6000 6000 x 2000 2000 400 70 4 3200
ESPH.1/60-16-2 60.60.403 6000 5000 x 1500 1600 400 66 4 2750
ESPH.1/60-16-1 60.60.402 6000 4500 x 1200 1600 350 35 4 1800
ESPH.1/60-11 60.60.401 6000 3600 x 900 1100 350 30 4 1600
ESPH.1/60-09 60.60.400 6000 2700 x 800 820 350 28 3 1250
ESPH.1/40-20 60.40.304 4000 6000 x 2000 2000 350 50 4 2400
ESPH.1/40-16-2 60.40.303 4000 5000 x 1500 1600 350 45 4 2000
ESPH.1/40-16-1 60.40.302 4000 4500 x 1200 1600 350 40 4 1450
ESPH.1/40-11 60.40.301 4000 3600 x 900 1100 300 44 2,2 1100
ESPH.1/40-09 60.40.300 4000 2700 x 800 820 300 24 2,2 850
ESPH.1/30-20 60.30.204 3000 6000 x 2000 2000 300 45 4 2200
ESPH.1/30-16-2 60.30.203 3000 5000 x 1500 1600 300 45 4 1900
ESPH.1/30-16-1 60.30.202 3000 4500 x 1200 1600 300 40 3 1100
ESPH.1/30-11 60.30.201 3000 3600 x 900 1100 260 30 2,2 800
ESPH.1/30-09 60.30.200 3000 2700 x 800 820 260 20 2,2 700
ESPH.1/20-16 60.20.102 2000 4500 x 1200 1600 300 30 2,2 950
ESPH.1/20-11 60.20.101 2000 3600 x 900 1100 260 30 2,2 775
ESPH.1/20-09 60.20.100 2000 2700 x 800 820 260 20 2,2 600
ESPH.1/10-16 60.10.003 1000 4500 x 1200 1600 300 30 2,2 900
ESPH.1/10-11 60.10.002 1000 3600 x 900 1100 260 30 1,5 750
ESPH.1/10-09 60.10.001 1000 2700 x 800 820 230 18 1,1 520

Tandem Type Scissor Lift | OND LIFT GERMANY – Reliable Lifting Solution for Large and Heavy Loads

The Ond Lift Germany Tandem Type Scissor Lift is engineered to deliver outstanding performance in industrial operations where oversized or heavy materials must be elevated safely. Designed with advanced technology, it can handle loads from 100 kg up to 250,000 kg, making it a highly versatile lifting platform for demanding projects. Its tandem scissor mechanism ensures even, stable, and secure lifting across long platform surfaces.

Every Tandem Type Scissor Lift can be customized according to specific customer requirements, including platform size and technical features. This makes it a suitable choice for logistics hubs, heavy industry facilities, production areas, and assembly lines. Operated with a 24V DC control system, it supports both hold-to-run and push-button operation, providing flexibility and safety for different working environments.

In terms of safety, the Tandem Type Scissor Lift is fully CE certified and manufactured in compliance with EN 1570-1 European Safety Standards. Safety gaps are maintained between moving components, while the platform incorporates critical features such as an anti-crush frame, overload protection, hose burst safety valves, and an IP54-rated electrical system.

Built for durability, it is equipped with high-pressure hydraulic cylinders, reinforced hoses, and maintenance-free roller bearings to ensure long service life with minimal upkeep. A mechanical lock bar adds further protection, securing the lift during maintenance. Each unit undergoes rigorous testing, including +30% overload capacity trials, to guarantee reliable performance in real-world applications.

Customers can also choose from a variety of accessories such as turntables, protective bellows, safety railings, or lifting eye bolts, enhancing both functionality and operator safety.

✅ Main Benefits of the OND Lift Germany Tandem Type Scissor Lift

  • Wide load range: from 100 kg up to 250,000 kg
  • Customizable dimensions and configurations
  • CE certified and EN 1570-1 compliant for maximum safety
  • IP54-rated electrical system
  • 24V DC control with multiple operating options
  • Reinforced hydraulic components and long-lasting cylinders
  • Safety systems including overload and hose burst protection
  • Mechanical lock bar for safe maintenance
  • Optional accessories for added flexibility and protection

The Ond Lift Germany Tandem Type Scissor Lift is the ultimate solution for businesses that need to handle long or oversized loads with maximum safety and efficiency. Combining strength, adaptability, and strict safety compliance, it delivers dependable performance and long-term value for industrial operations.
