Single Scissor Lift Table – Heavy-Duty Lifting Solution for Intensive Industrial Use

Single Scissor Lift Table – Heavy-Duty Lifting Solution for Intensive Industrial Use

A robust, safety-focused lift table engineered for continuous operation in demanding work environments.

OND Lift Germany supplied a Single Scissor Lift Table built for heavy-duty industrial applications where large platforms, high stability, and operator safety are essential.
This custom-engineered system provides reliable vertical positioning for heavy materials, tools, and production components.

⚙️ Project Overview

Product: Lift Table – Single Scissor
Capacity: 1,000 kg
Platform Size: 3700 × 1820 mm
Stroke: 1,800 mm
Closed Height: 260 mm
Surface Finish: Powder-coated, RAL 7016
Usage: Intensive industrial lifting

🏭 Project Requirements

The customer required a durable, large-format lifting solution that could:

• Handle 1-ton loads safely and repeatedly
• Provide a very wide platform suitable for oversized materials
• Support continuous operation in a heavy-duty industrial environment
• Integrate multiple built-in safety systems
• Prevent accidental use when protective equipment is not in position

A long service life and full operator protection were priority requirements.

💡 OND Lift Germany’s Engineered Solution

OND Lift Germany delivered a Single Scissor Lift Table specifically optimized for demanding industrial conditions:

Large, Heavy-Duty Platform

• A generous 3700 × 1820 mm platform accommodates wide or bulky materials
• Reinforced scissor structure designed for high rigidity under load

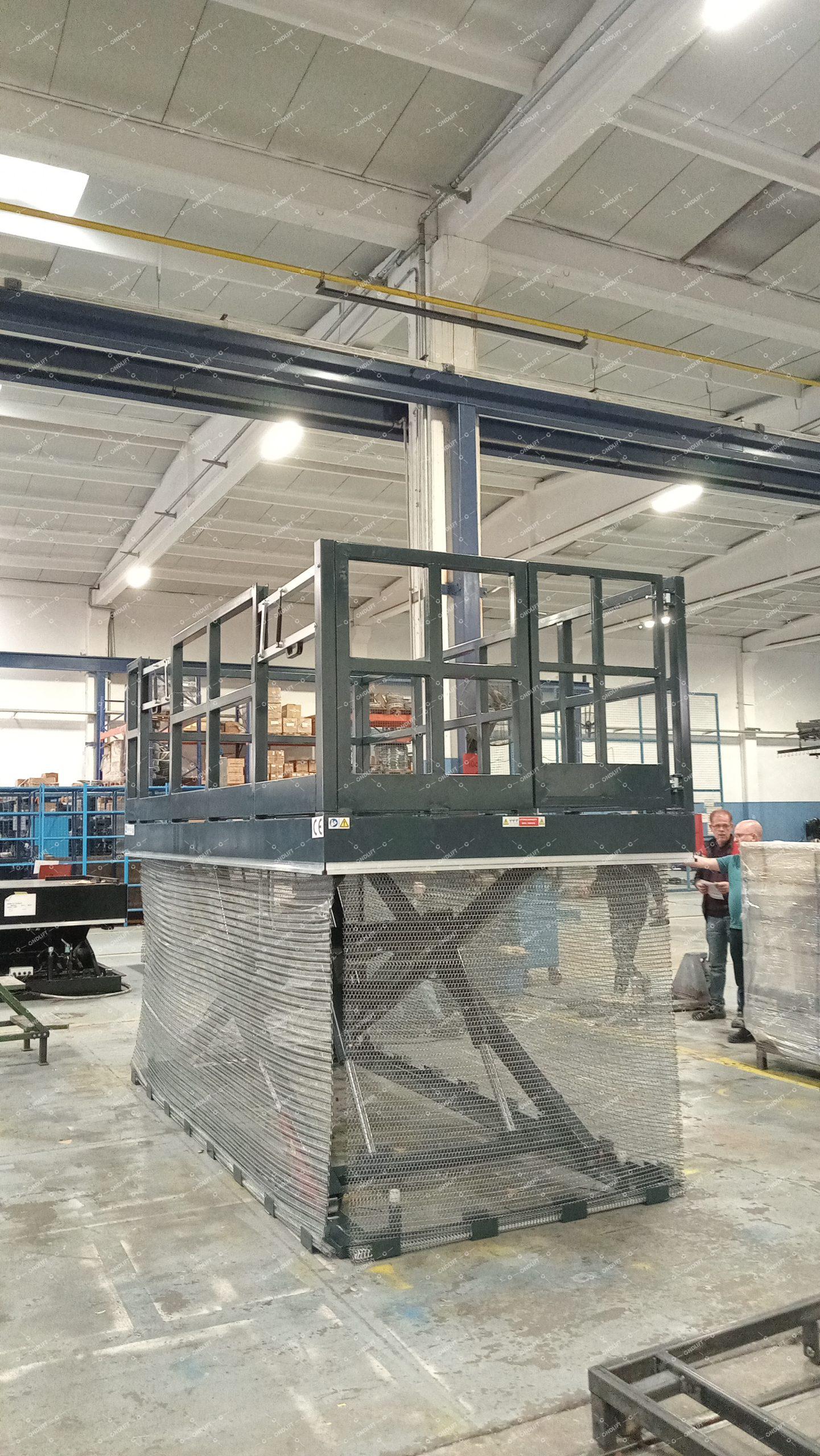

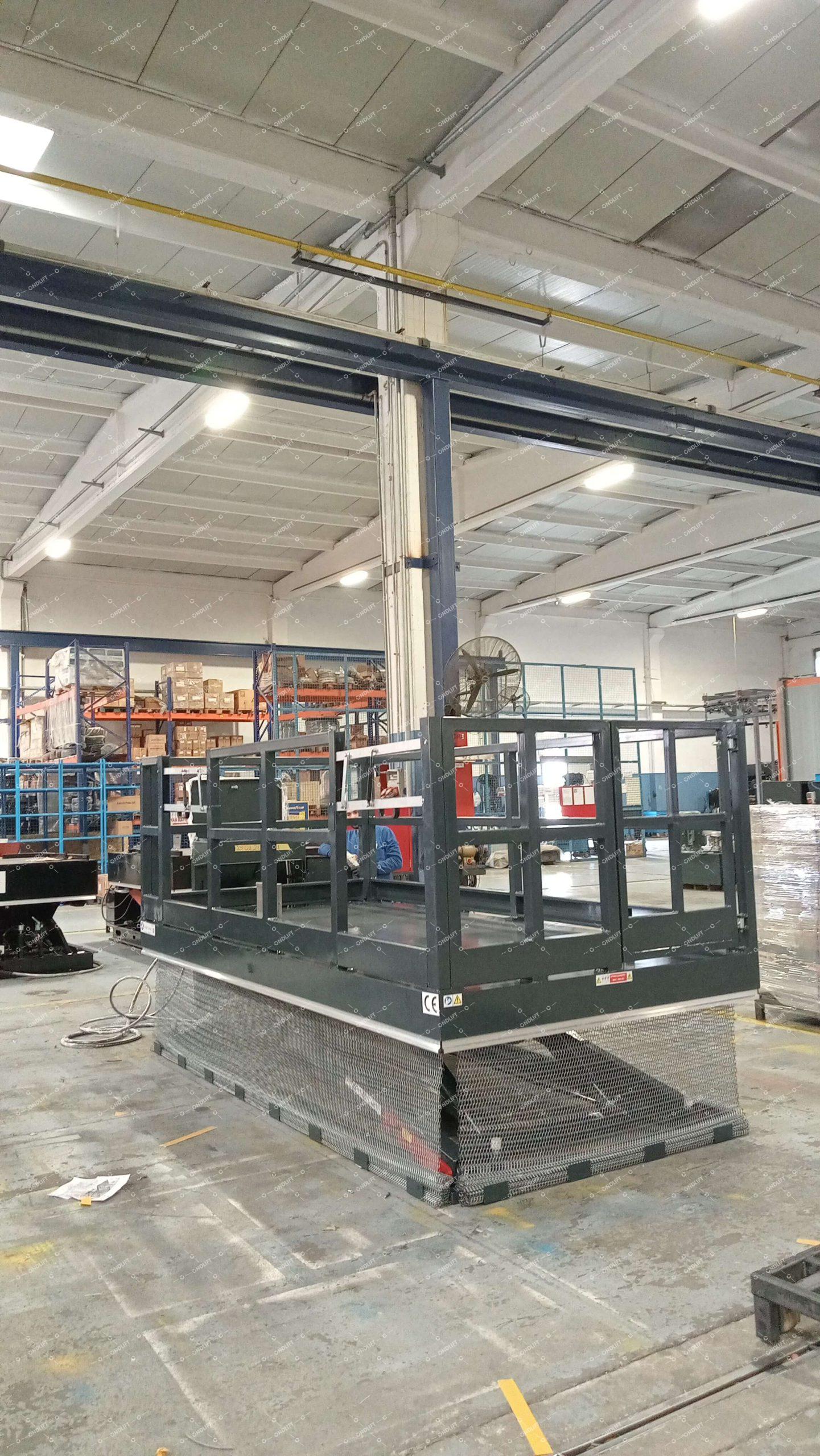

Safety-Critical Handrail System

• Bolted handrails on three sides of the platform
• Interlocked platform gates on the short side
• Safety interlock logic:
  • If handrails are not properly mounted, the lift will not operate
  • Prevents unsafe use and ensures compliance with internal safety protocols

High-Performance Mechanics

• 1,800 mm stroke for flexible working height adjustment
• 260 mm closed height suitable for loading from ground or roller conveyors
• Engineered for intensive usage with high stability and minimal vibration

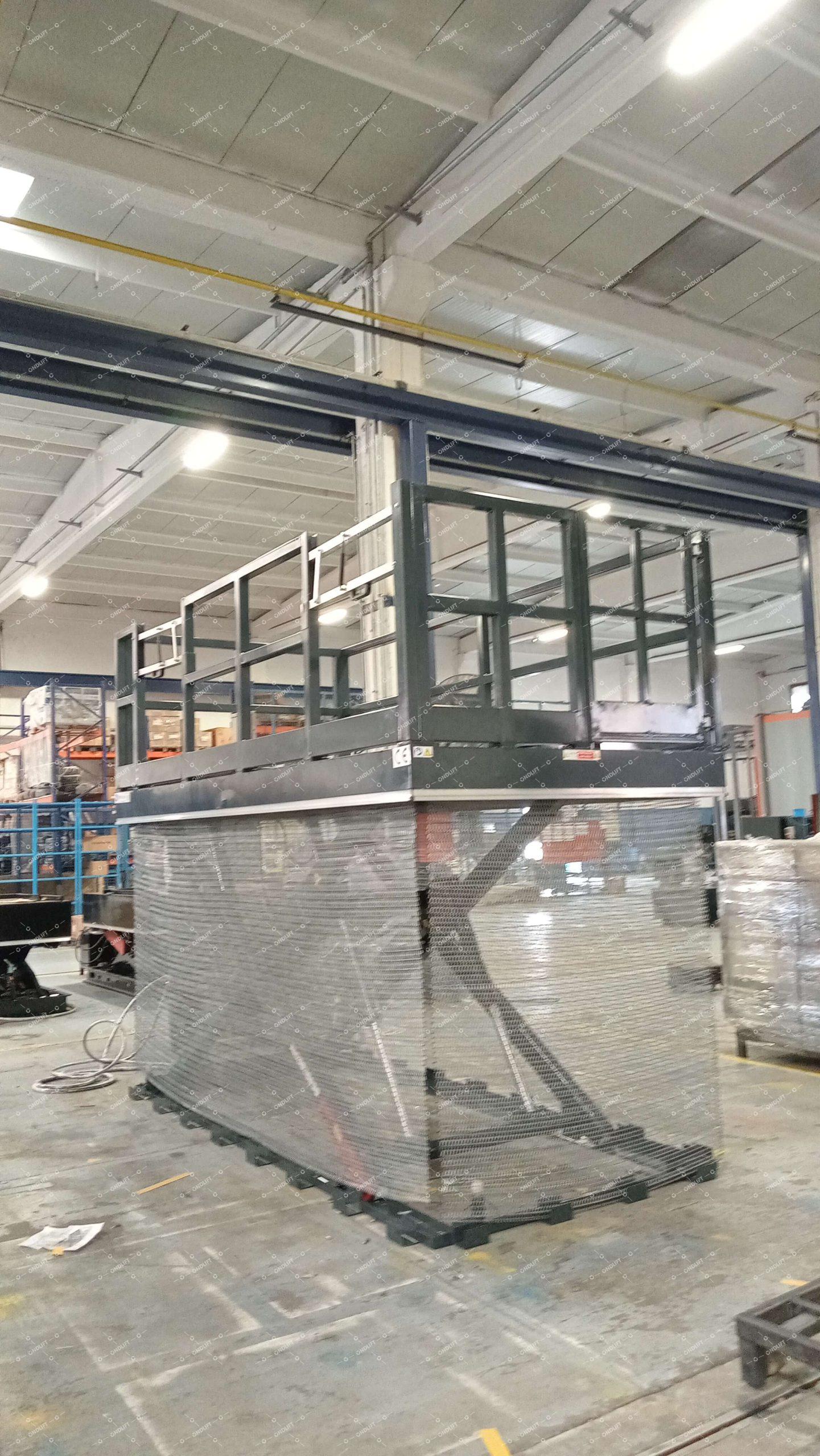

Mesh Bellow Protection

• Fully galvanized mesh bellows on all four sides
• Protects operators from moving parts
• Shields the mechanical structure from dust and debris
• Ensures long component life

Industrial Finish

• Powder-coated in RAL 7016, providing a durable surface for harsh conditions

This lift table is now a reliable part of the customer’s operations, supporting continuous handling of large materials safely and efficiently.

⚙️ Technical Specifications

🔩 Project Outcome

The installed lift table provides:

• Secure handling of oversized loads thanks to the wide platform
• Maximum operator safety through interlocks and full-side bellows protection
• High reliability in continuous heavy-duty operation
• Ergonomic and efficient workflows with adjustable height
• Long service life supported by reinforced construction and corrosion-resistant components

The system now serves as a key lifting element in the customer’s industrial process.

OND Lift Germany – Precision Lifting Solutions for Demanding Industrial Workflows.
